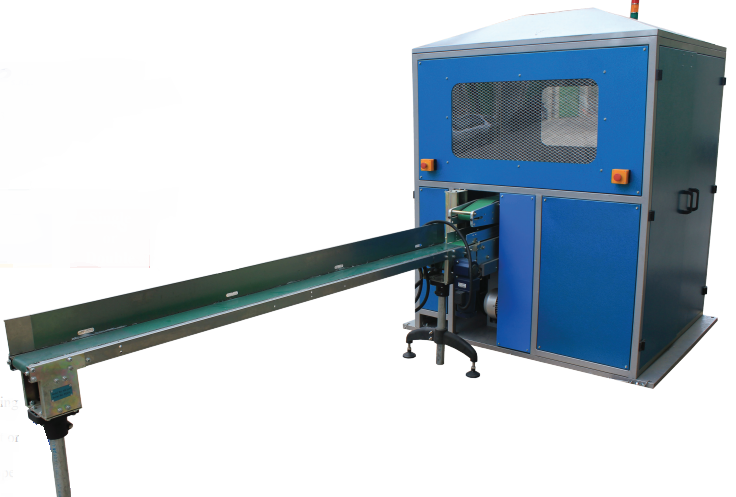

Automatic Facial Orbital Log Saw AM 244F

Automatic Facial Orbital Log Saw

AM 244F



Features :

  • Double or single tissue bundles cutting
  • Orbital cutting system
  • Blade safety cabin
  • Automatic blade sharpening system
  • Automatic blade adjustment on the cutting level
  • Automatic stop in case of misplacement or over height of bundle
  • Automatic stop in case cabin door are open
  • Tissue bundle in feed by servo motor
  • Bundles feeding belts controlled by a servo motor , which provide the right cutting length (mm)
  • Pneumatic disk brake system for the cutting unit
  • Superior timing tension rubber belts for the driving system
  • Can trim the both bundle sides
  • Press conveyors before and after cutting blade



Technical Features :

  • Tissue bundle length : max 2750 mm ( modified upon request )
  • Electronic cutting length control : variable within 100 - 250 mm
  • Tissue height : min.40 mm - max. 100 mm
  • Maximum operation speed : 130 cuts / cycles / min * 1 or 2 lines
  • Grinding wheel : diamond , Germany
  • Automatic adjusting for the grinding stones to follow the edge of the disk

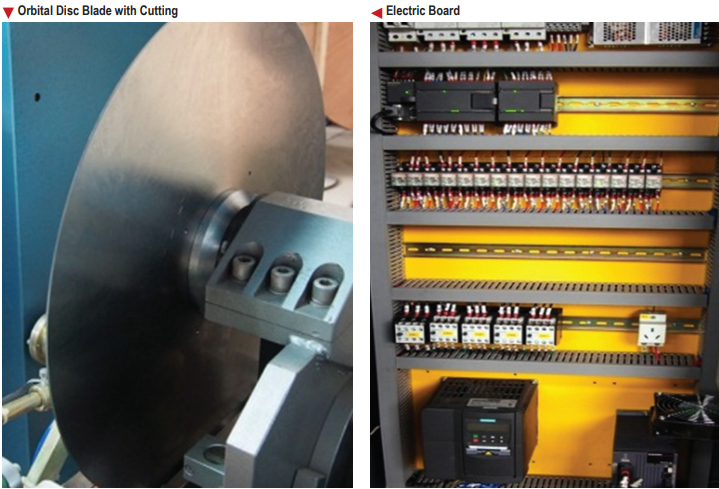

  • Circular blade diameter : 610 mm - Germany
  • Variable speed control
  • Clamps set before & after the disk , which fix the log very well during the cutting process

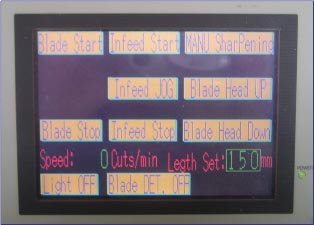

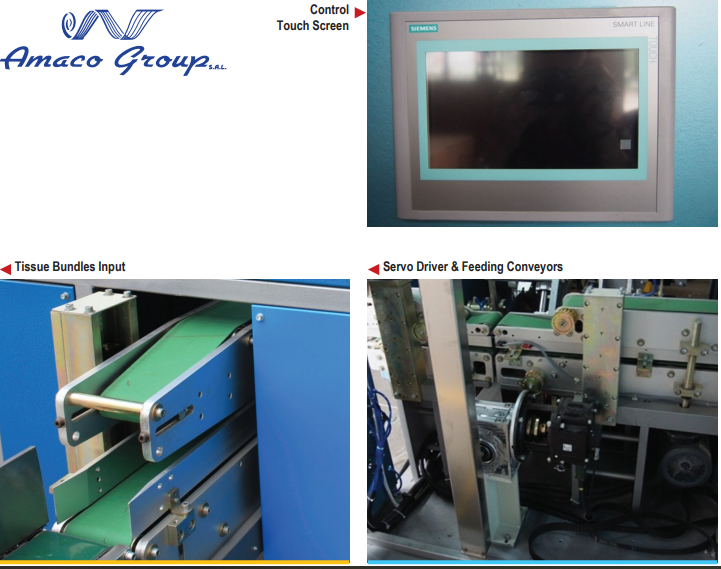

  • Siemens PLC control system - Touch screen operation panel
  • Power supply : 380V.3 phases , 50 Hz , 24V DC control , 9KW

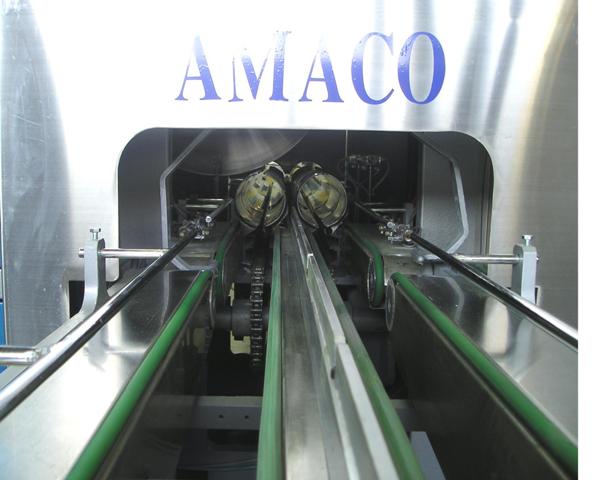

  • Tissues output : flat belt conveyors to send out the tissues out of the log saw



OPTIONAL : two lines log saw with different cutting size for each line ( cut two lengths in the same time )

OPTIONAL : modify the conveyors height for cut bundles from 20 to 150 mm
